Minus 130C Tunnel Blast Freezer Cooling Tunnel Machine 1000KG/H 1200KG/H

Shenzhen Dejieli Refrigeration Technology Co., Ltd.
Contact Now

Minus 130C Tunnel Blast Freezer Cooling Tunnel Machine 1000KG/H 1200KG/H

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Brand Name : DJL

Certification : ISO9001 CE

Packaging Details : customized

Supply Ability : 10 Set/Sets per Month

Price : negotiable

Model Number : DJL-QFL-2418

MOQ : 1 SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 30-45 working days

Temperature Control precision : Plus 3 ℃

working temperature : -130℃---Room temperature

temperature uniformity : Plus 5℃

Application : seafood

Port : Shenzhen

Freezing Capacity : 2500kg

Contact Now

Blast Freezer Tunnel Philippines Shrimp Block Freezer Liquid Nitrogen Freezer

Product description

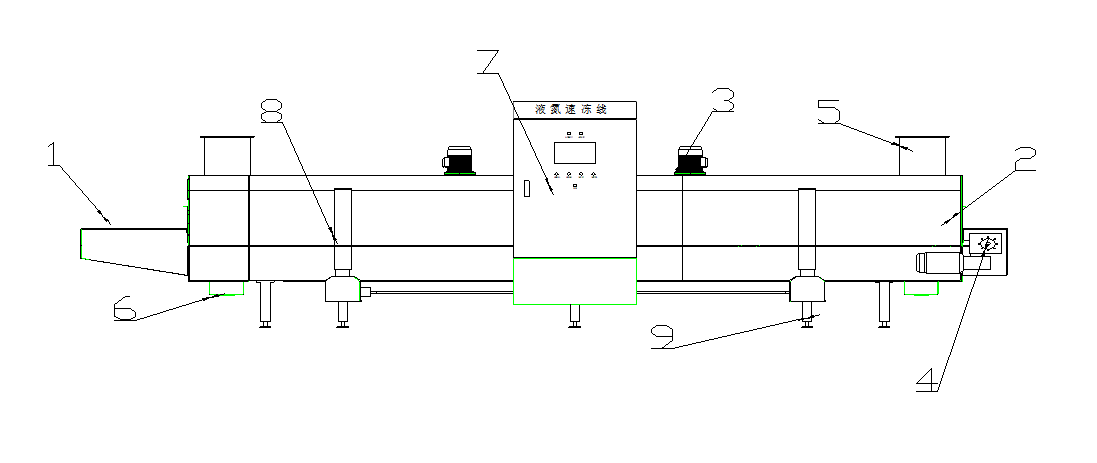

1.Inlet port 2. outlet port 3. circulating fan 4. wirebelt transport system
5. exhaust emission outlet 6. cleaning drainage 7. Electrical control cabinet
8. Elevator 9. Adjustable base
Specification
Model
Tunnel length
(mm)
Wire belt width
(mm)
Tunnel height
(mm)
Power
(KW)
freezing capacity
(kg/h)
DJL-QFL-1206
6000
1200
1750
10
400-600
DJL-QFL-1209
9000
1200
1750
12
800-1000
DJL-QFL-1212
12000
1200
1750
18
1000-1200
DJL-QFL-1609
9000
1600
1750
15
1000-1200
DJL-QFL-1612
12000
1600
1750
28
1800-2100
DJL-QFL-1618
18000
1600
1750
32
2000-2500
DJL-QFL-1815
15000
1800
1750
28
2000-2500
DJL-QFL-1818
18000
1800
1750
32
2200-2800
DJL-QFL-1824
24000
1800
1750
46
2800-3500
Minus 130C Tunnel Blast Freezer Cooling Tunnel Machine 1000KG/H 1200KG/H
Liquid nitrogen quick freezing system diagram
1. liquid nitrogen freezing tunnel
2. liquid nitrogen tank
3. tank base
4. exhaust duct
5. exhaust fan
6. liquid nitrogen pipeline

Our Advantages
1. More than 10 years of professional recognition for ultra-low temperature deep cooling ,own independent intellectual property rights with more than 10 patented technologies.
2. The ability of compound innovation and multi-technology integration makes DJL unique in freezing machine industry.
3. Personalized scheme provides you the best cost performance of product
4. Close cooperative relationships with many universities
5. Three minutes quick-freezing ,the temperature low to minimum -196℃
6. Reasonable &exclusive quick-freezing total solution maximize utilize/save customers cost.
7. Free experiment and verification supporting .
8. Better serving customers by setting up branches and offices in country's areas.

FAQ

1. How fast is DJL liquid nitrogen freezing technology?

DJL reply: There will be differences according to the different thickness and the packaging and different freezing temperature of product, when extreme temperature is used, DJL liquid nitrogen fast freezing speed can freeze naked frozen food with a thickness of 5CM in 3 minutes at the fastest., However, it is more common to freeze naked-food which up to 10CM thick within 10-30 minutes, usually used temperature between -80℃ to -120℃, extreme use of liquid nitrogen immersion, the temperature can reach -196℃.

2. What are the advantages of liquid nitrogen quick freezing compared with the traditional freezers and iqf freezer?

DJL Reply: Before answering this question, it is necessary for us to clarify the standard definition of quick freezing: quick freezing of food is to place the pre-processed food into a low-temperature device, pass through the largest ice crystal formation zone within 30 minutes, and the central temperature drops from 0℃ to Below -5℃, the diameter of the ice crystals formed is less than 100μm, and the center temperature of the food after quick freezing must reach the food freezing technology below -18℃. Due to its fast speed, the cell integrity of liquid nitrogen quick-frozen food was much higher than that of traditional freezing method, and the cell damage rate was nearly 80% less than that of slow-freezing food, so its taste, nutrition and color are much better than slow freezing food, In terms of seafood, DJL liquid nitrogen quick-freezing technology can be comparable to seafood in fresh state after freezing and thawing. Therefore, liquid nitrogen quick-freezing technology can better maintain the color, aroma, flavor and taste of food, and its sales value will also be greatly improved.

3. What is the dry consumption of liquid nitrogen quick freezing?

DJL reply: For seafood naked freezing with high water content, after froze by DJL liquid nitrogen freezing technology, its dry consumption is about 1‰ to 5‰, while the traditional freezing method is generally within 3~5% . If the product with a relatively high unit price, alarge part of the loss of economic value can be avoided by dry consumption weight.
